Vertical Monolithic Silos
Inquip offers a range of carbon steel and stainless steel solutions for storing powders, aggregates, and liquids.
Vertical Monolithic Silos offer a robust storage solution for bulk materials like cement, lime, fly ash, and other dry powders. Constructed as single-piece units, they deliver maximum strength, durability, and airtight performance.
Precision-engineered for easy installation and long-term efficiency, the monolithic design eliminates leak points common in multi-joint silos, protecting materials from moisture and contamination while reducing maintenance needs.
Ideal for construction, mining, agriculture, and material processing, these silos can be fitted with aeration systems, safety valves, level indicators, dust filters, and discharge systems to suit specific applications.
Key Features
- Seamless monolithic construction for strength and hygiene
- Corrosion-resistant interior and exterior coatings
- Suitable for powders, granules, and bulk solids
- Customisable capacities and configurations
- Easy integration with pneumatic or mechanical conveying systems
A space-saving, low-maintenance solution delivering secure, high-performance bulk storage.

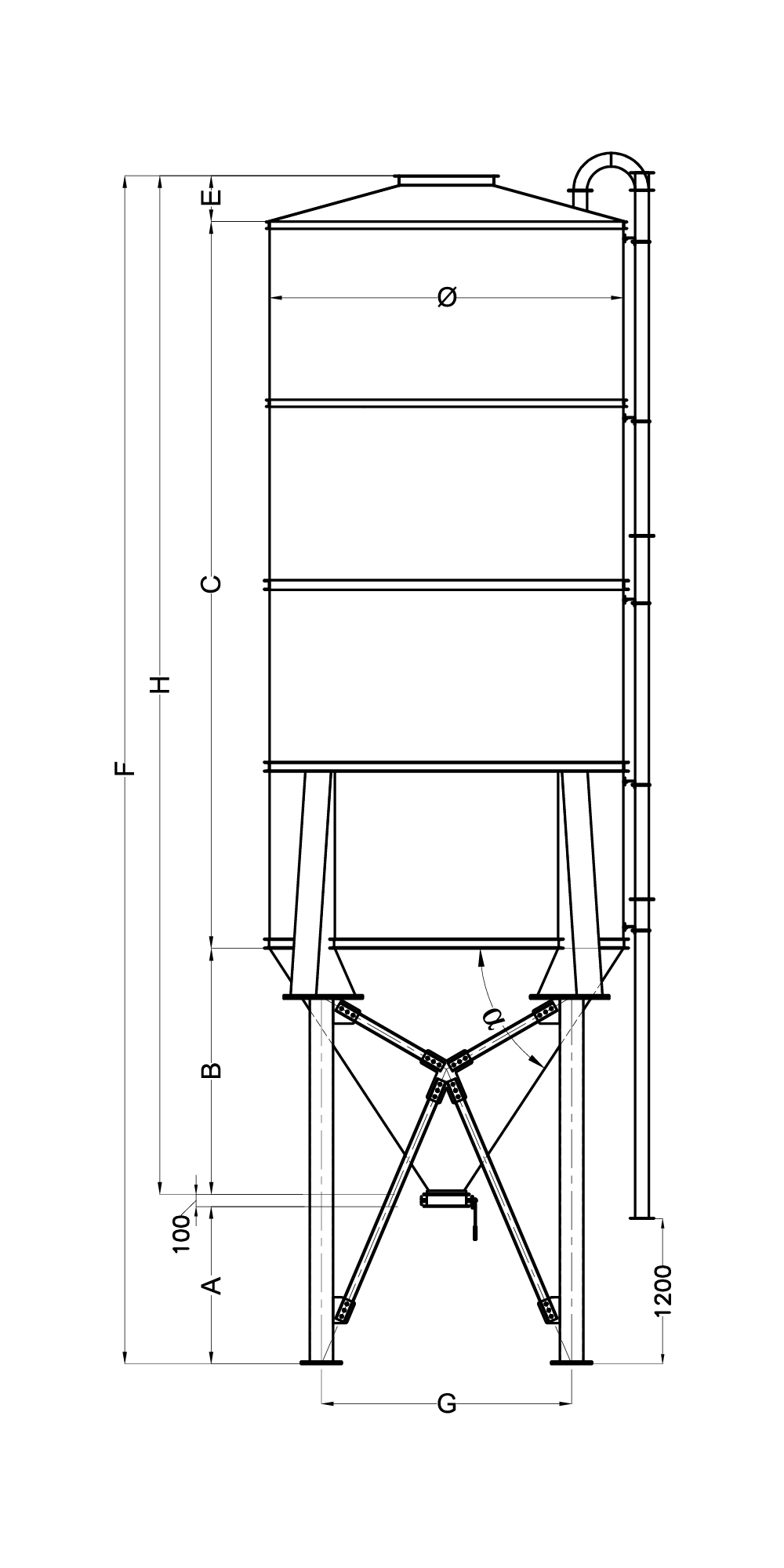

Ø2920
| Code | SML30-45 | SML30-55 | SML30-65 | SML30-75 | SML30-85 |
|---|---|---|---|---|---|
| Capacity (m3) | 45 | 55 | 65 | 75 | 85 |
| No. of Rings | 4 | 5 | 6 | 7 | 8 |
| Foundation Plate S = 0 | A | A | A | A | A |
| Foundation Plate S = 9 | B | B | B | B | B |
| O (mm) | 2920 | 2920 | 2920 | 2920 | 2920 |
| A (mm) | 1300 | 1300 | 1300 | 1300 | 1300 |
| B (mm) | 2030 | 2030 | 2030 | 2030 | 2030 |
| C (mm) | 6000 | 7500 | 9000 | 10500 | 12000 |
| E (mm) | 380 | 380 | 380 | 380 | 380 |
| H (mm) | 8410 | 9910 | 11410 | 12910 | 14410 |
| F (mm) | 9810 | 11310 | 12810 | 14310 | 15810 |
| G (mm) | 2065 | 2065 | 2065 | 2065 | 2065 |
Ø2380
| Code | SML25-09 | SML25-16 | SML25-23 | SML25-29 | SML25-36 | SML25-43 | SML25-50 |
|---|---|---|---|---|---|---|---|
| Capacity (m3) | 9 | 16 | 23 | 29 | 36 | 43 | 50 |
| No. of Rings | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Foundation Plate S = 0 | B | B | B | B | B | B | B |
| Foundation Plate S = 9 | B | B | B | B | A | A | A |
| Ø (mm) | 2380 | 2380 | 2380 | 2380 | 2380 | 2380 | 2380 |
| A (mm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| B (mm) | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| C (mm) | 1500 | 3000 | 4500 | 6000 | 7500 | 9000 | 10500 |
| E (mm) | 330 | 330 | 330 | 330 | 330 | 330 | 330 |
| H (mm) | 3360 | 4860 | 6360 | 7860 | 9360 | 10860 | 12360 |
| F (mm) | 4960 | 6460 | 7960 | 9460 | 10960 | 12460 | 13960 |
| G (mm) | 1690 | 1690 | 1690 | 1690 | 1690 | 1690 | 1690 |
Ø2380
| Code | SML25C-09 | SML25C-16 | SML25C-23 | SML25C-29 | SML25C-36 | SML25C-43 | SML25C-50 |
|---|---|---|---|---|---|---|---|
| Capacity (m3) | 9 | 16 | 23 | 29 | 36 | 43 | 50 |
| No. of Rings | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Foundation Plate S = 0 | B | B | B | B | B | B | B |
| Foundation Plate S = 9 | B | B | B | B | A | A | A |
| Ø (mm) | 2380 | 2380 | 2380 | 2380 | 2380 | 2380 | 2380 |
| A (mm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| B (mm) | 1815 | 1815 | 1815 | 1815 | 1815 | 1815 | 1815 |
| C (mm) | 1500 | 3000 | 4500 | 6000 | 7500 | 9000 | 10500 |
| E (mm) | 330 | 330 | 330 | 330 | 330 | 330 | 330 |
| H (mm) | 3645 | 5145 | 6645 | 8145 | 9645 | 11145 | 12645 |
| F (mm) | 5245 | 6745 | 8245 | 9745 | 11245 | 12745 | 14245 |
| G (mm) | 1690 | 1690 | 1690 | 1690 | 1690 | 1690 | 1690 |
